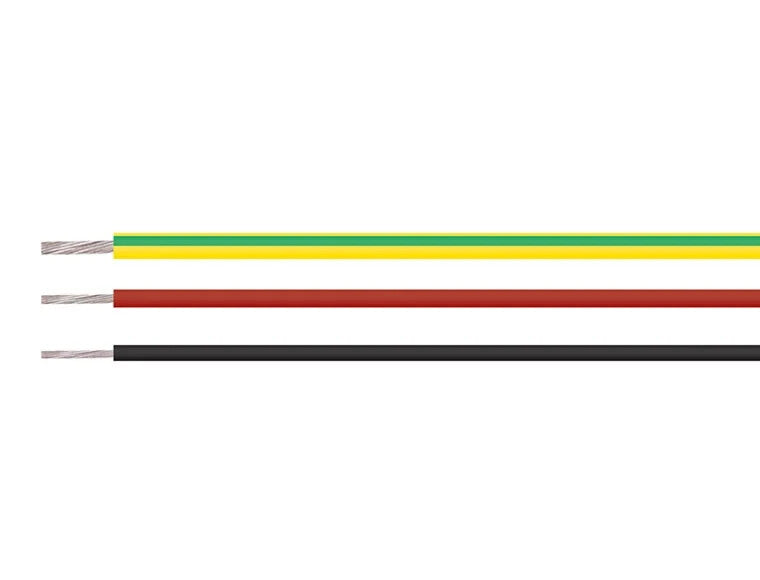

Câble SiF red 1 x 4 mm² - 100M
€80,00
Prix promotionnel
€80,00
Prix régulier
€0,00
Passer aux informations sur le produit
Item description
Outer Ø mm (approx.)
Core Colour
AWG (approx.)
Cu-weight kg/km
Weight kg/km (approx.)
Copper base in EUR / 100 kg
VPE/m
Cut-to-length service available
EAN/GTIN
Câble SiF red 1 x 4 mm² - 100M
€80,00
Prix promotionnel
€80,00
Prix régulier
€0,00
Description
Technical Data
| Silicone single core in alignment with DIN VDE 0250-1, DIN VDE 0250-502 | |
| Temperature range | flexible -25°C to +180°C fixed -60°C to +180°C |
| Permissible operating temperature of the conductor | +180°C |
| Nominal voltage | AC U0/U 300/500 V |
| Test voltage | 2000 V |
| Breakdown voltage | 5000 V |
| Minimum bending radius | flexible 15x Outer-Ø fixed 6x Outer-Ø |
- Copper wire tinned, finely stranded, 0.5 - 185 mm²: acc. to DIN VDE 0295 Class 5 / IEC 60228 Class 5
- Wire structure:
- 0.25 mm²: approx. approx. 8 x 0.2 mm
- Core insulation: silicone
- Core identification: see datasheet
Properties
- resistant to: ozone, oxygen, alcohols, dilute acids, alkalis, saline solutions, oxidising agents, high molecular weight oils, vegetable and animal fats, plasticisers and clophen, seawater
- halogen-free
- high flash point
Nous contacter pour info ou photos complémentaire
Contact us for information or additional photos
TVA RECUPERABLE
